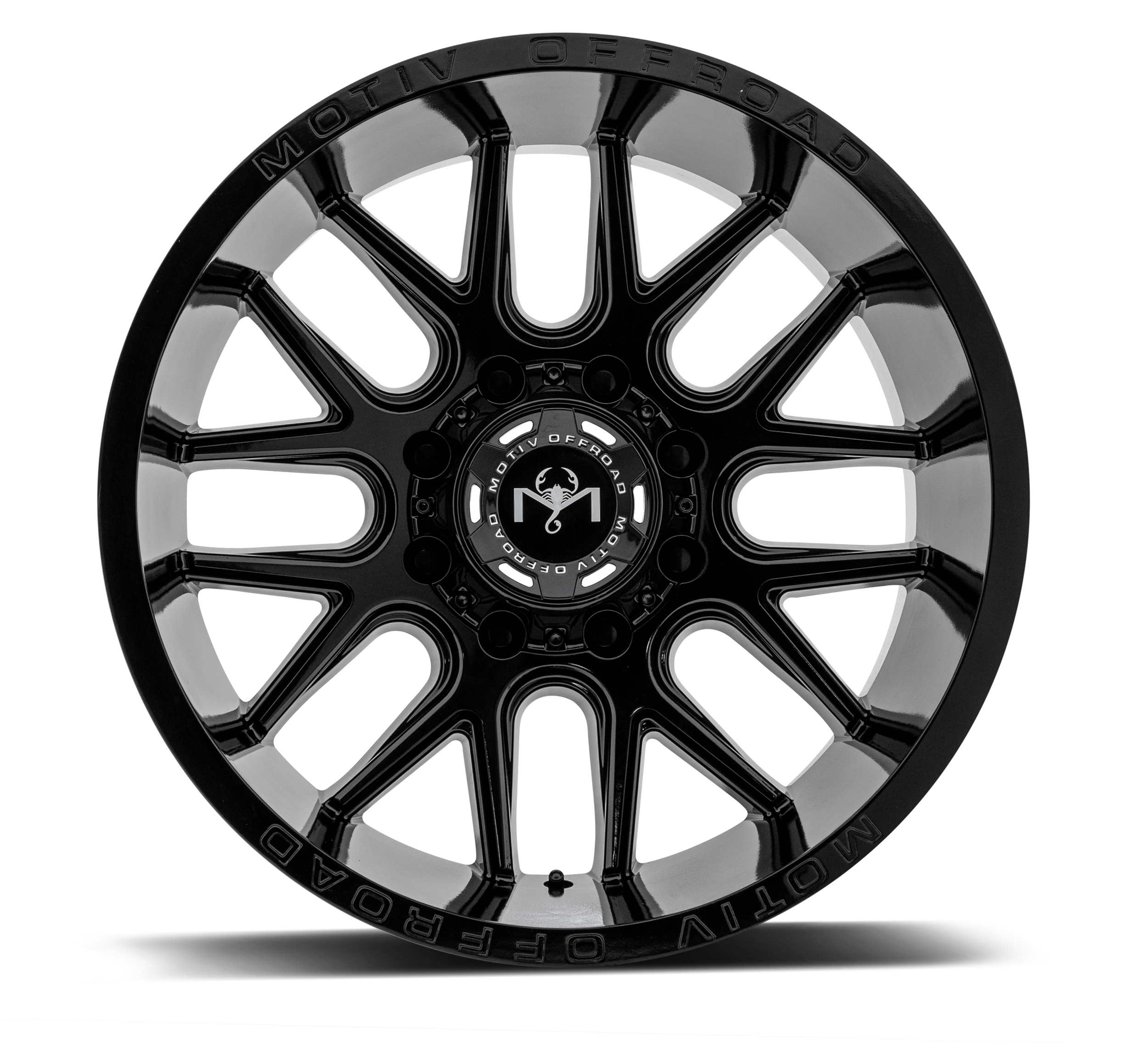

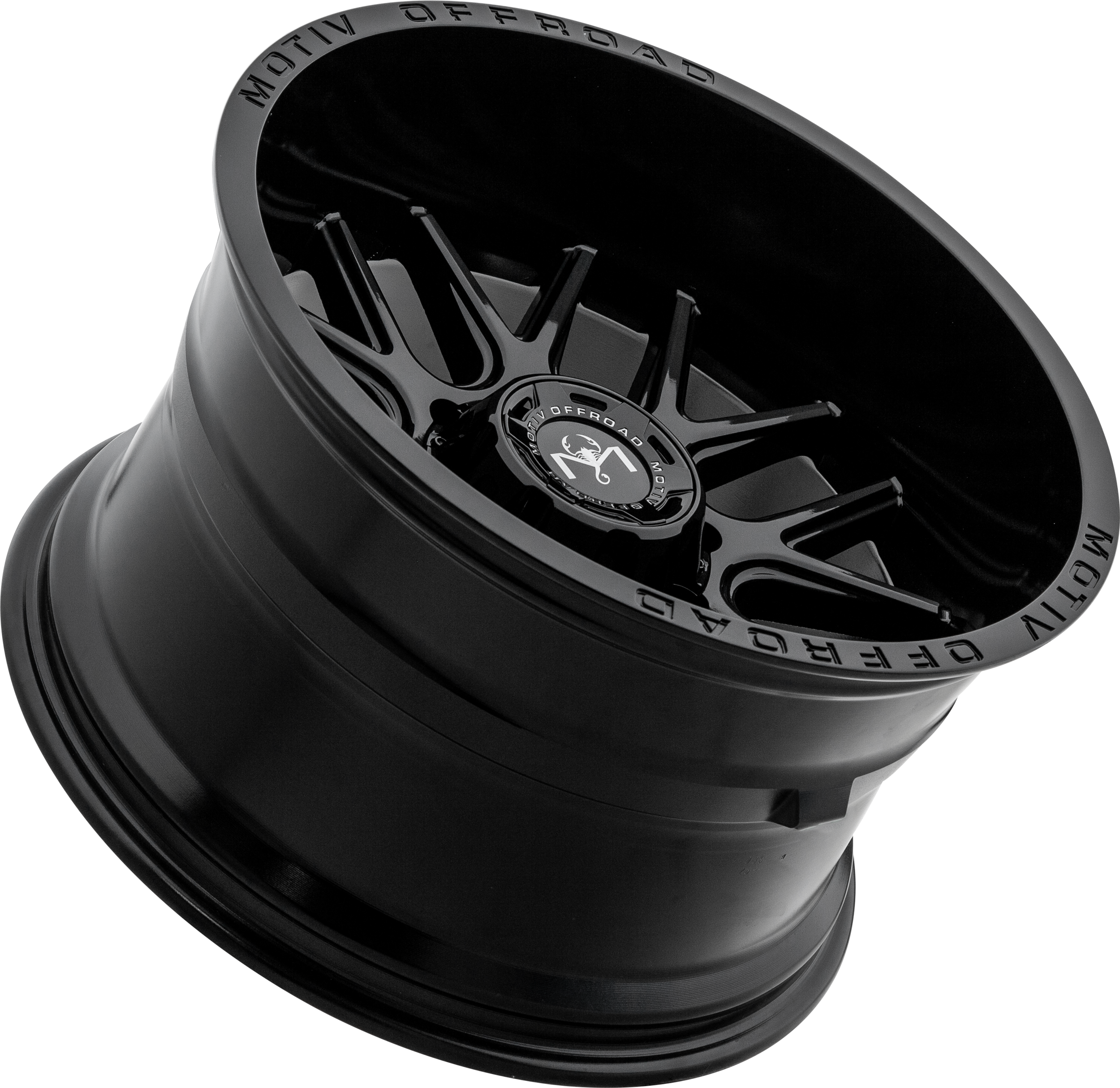

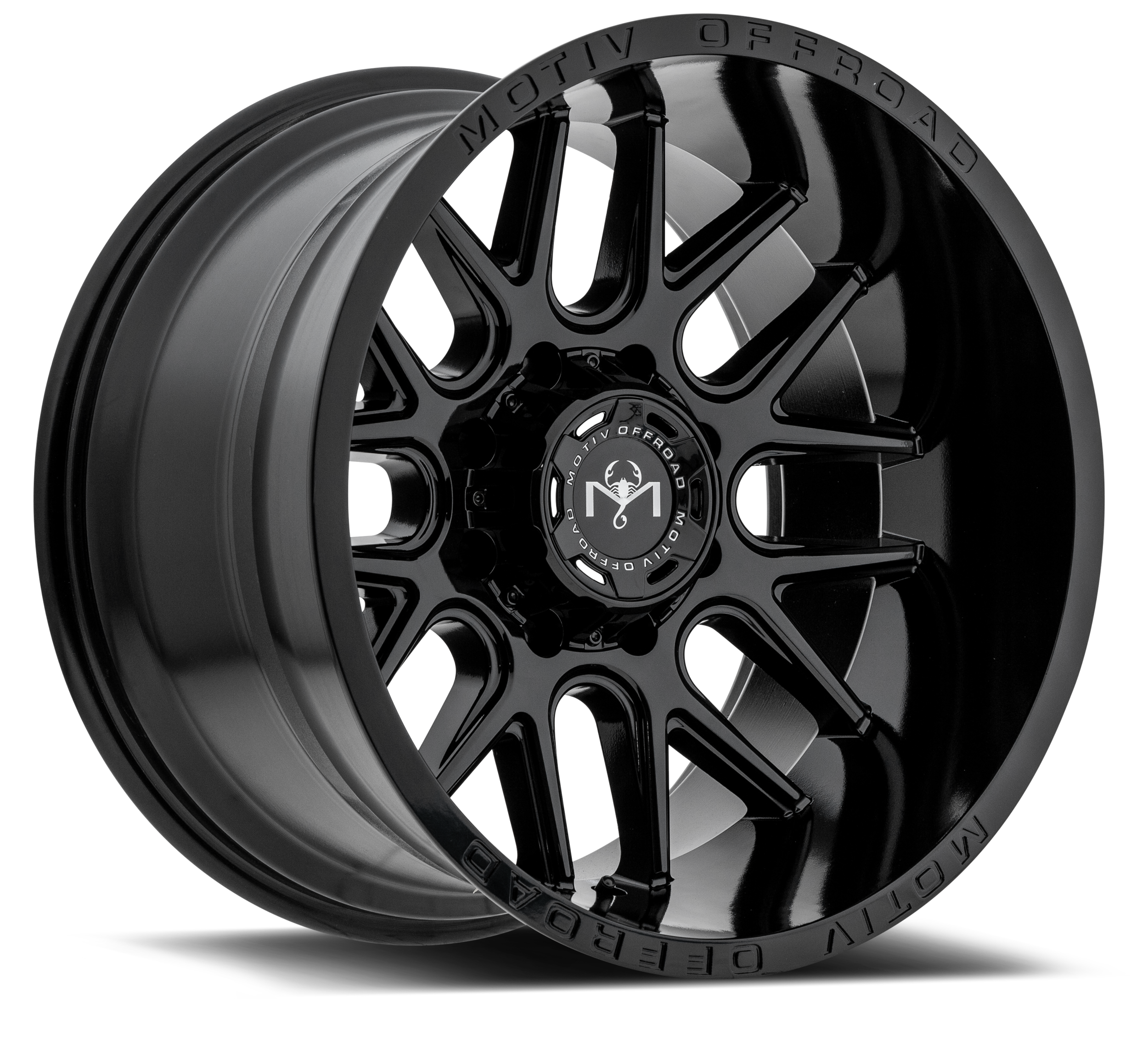

MAGNUS

423B


Gloss Black

Available in:  20”

PATENT PENDING



WHEEL SPECIFICATIONS

Part Number Wheel Size Bolt Circle Bolt Circle 2 Offset (mm) Back Spacing Hub Bore (mm) Load Rating Cap Lip Width
423B-2090518 20x9 5x4.50 5x5.00 +18 5.71 78.00mm 2500 CAP-MT6-B19 5.46
423B-2095218 20x9 5x5.50 5x150 +18 5.71 110.00mm 2500 CAP-MT6-B19 5.46
423B-2096818 20x9 6x135 6x5.50 +18 5.71 108.00mm 2500 CAP-MT6-B19 5.46
423B-2098118 20x9 8x6.50 +18 5.71 125.20mm 3700 CAP-MT8-B19 5.46
423B-2098718 20x9 8x170 +18 5.71 125.20mm 3700 CAP-MT8-B19 5.46
423B-2098918 20x9 8x180 +18 5.71 124.30mm 3700 CAP-MT8-B19 5.46
423B-2100512 20x10 5x4.50 5x5.00 -12 5.03 78.00mm 2500 CAP-MT6-B19 5.69
423B-2105212 20x10 5x5.50 5x150 -12 5.03 110.00mm 2500 CAP-MT6-B19 5.69
423B-2106812 20x10 6x135 6x5.50 -12 5.03 108.00mm 2500 CAP-MT6-B19 5.69
423B-2108112 20x10 8x6.50 -12 5.03 125.20mm 3700 CAP-MT8-B19 5.69
423B-2108712 20x10 8x170 -12 5.03 125.20mm 3700 CAP-MT8-B19 5.69
423B-2100525 20x10 5x4.50 5x5.00 -25 4.52 78.00mm 2500 CAP-MT6-B19 5.69
423B-2105225 20x10 5x5.50 5x150 -25 4.52 110.00mm 2500 CAP-MT6-B19 5.69
423B-2106825 20x10 6x135 6x5.50 -25 4.52 108.00mm 2500 CAP-MT6-B19 5.69
423B-2108125 20x10 8x6.50 -25 4.52 125.20mm 3700 CAP-MT8-B19 5.69
423B-2108725 20x10 8x170 -25 4.52 125.20mm 3700 CAP-MT8-B19 5.69
423B-2120544 20x12 5x4.50 5x5.00 -44 4.77 78.00mm 2500 CAP-MT6-B19 6.27
423B-2125244 20x12 5x5.50 5x150 -44 4.77 110.00mm 2500 CAP-MT6-B19 6.27
423B-2126844 20x12 6x135 6x5.50 -44 4.77 108.00mm 2500 CAP-MT6-B19 6.27
423B-2128144 20x12 8x6.50 -44 4.77 125.20mm 3700 CAP-MT8-B19 6.27
423B-2128744 20x12 8x170 -44 4.77 125.20mm 3700 CAP-MT8-B19 6.27
